UL 20276 Multiple-conductor Cable
Reference standard
UL758 & UL1581
Rated
60℃ 80℃ 30V
Conductor
Tinned or bare, stranded or solid copper conductor 30 AWG minimum.
Insulation
Optional
Shield&Covering
Optional or PVC
Jacket
PVC
Flame test
VW-1 & FT1
Marking
E323326 AWM STYLE 20276 VW-1 80℃ 30V c AWM I/II A 80℃ 30V FT1 -F- LF EVERLONG

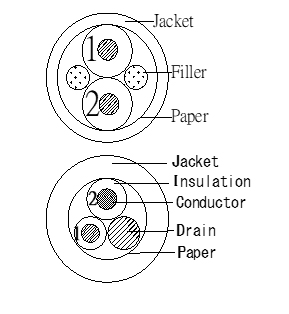

Construction Insulation Covering&Shield Jacket
AWG No./mm OD/mm thick/mm OD/mm Material thick/mm OD/mm
30 7 / 0.10 0.31 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
28 7 / 0.127 0.39 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
26 7 / 0.16 0.49 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
24 11 / 0.16 0.61 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
22 17 / 0.16 0.76 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
20 21 / 0.178 0.94 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
18 34 / 0.178 1.20 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
16 26 / 0.254 1.50 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
14 41 / 0.254 1.88 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
12 65 / 0.254 2.37 Conform to the provisions Conform to the provisions Optional >0.51 Conform to the provisions
