UL 2464 Multiple-conductor Cable
Reference standard
UL758 & UL1581
Rated
80℃ 300V
Conductor
Tinned or bare, stranded or solid copper conductor.
Insulation
SR-PVC  or  PVC
Number of cores
2C~30C
Covering&Shield
Optional
Jacket
PVC
Flame test
VW-1 & FT1 & -F-
Marking
E323326  AWM STYLE 2464 VW-1 80℃ 300V c AWM I/II A 80℃ 300V FT1 -F- LF EVERLONG

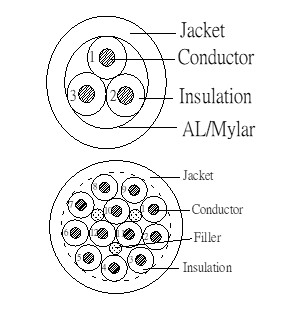

ConstructionInsulationCovering&ShieldJacket
AWGNo./mmOD/mmthick/mmOD/mmMaterialthick/mmOD/mm
307 / 0.100.31Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
287 / 0.1270.39Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
267 / 0.160.49Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
2411 / 0.160.61Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
2217 / 0.160.76Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
2021 / 0.1780.94Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
1834 / 0.1781.20Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
1626 / 0.2541.50Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
1441 / 0.2541.88Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
1265 / 0.2542.37Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
10105 / 0.2543.01Conform to the provisionsConform to the provisionsOptional>0.76Conform to the provisions
